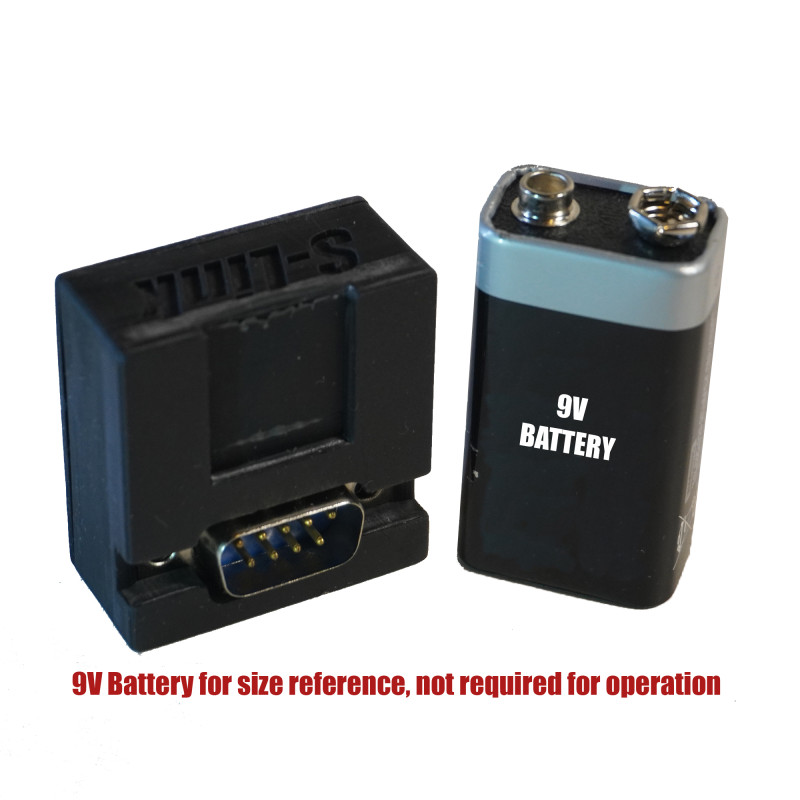

This WIFI Module/Adapter is designed to be a plug and play solution with minimal configuration for wireless tuning and datalogging for Mega squirt, or any equivalent device that uses a female db9 serial connection.

It supports a wide variety of the most common Baud rates in serial communication, most importantly including MS3/MS2 115200 (default) and MS1 9600, two of the most common. The baud rate can easily be configured

along with the SSID and PASSWORD allowing you to customize your module if desired.

Use your laptop or smartphone to connect to your mega squirt over WIFI.

Things couldn't be more easy. just plug it in, connect to the network, go to the configuration page, set the baud rate, hit save, and you are up and running.

No tangled cables or massive Bluetooth adapters that look ugly or just get in the way of things.

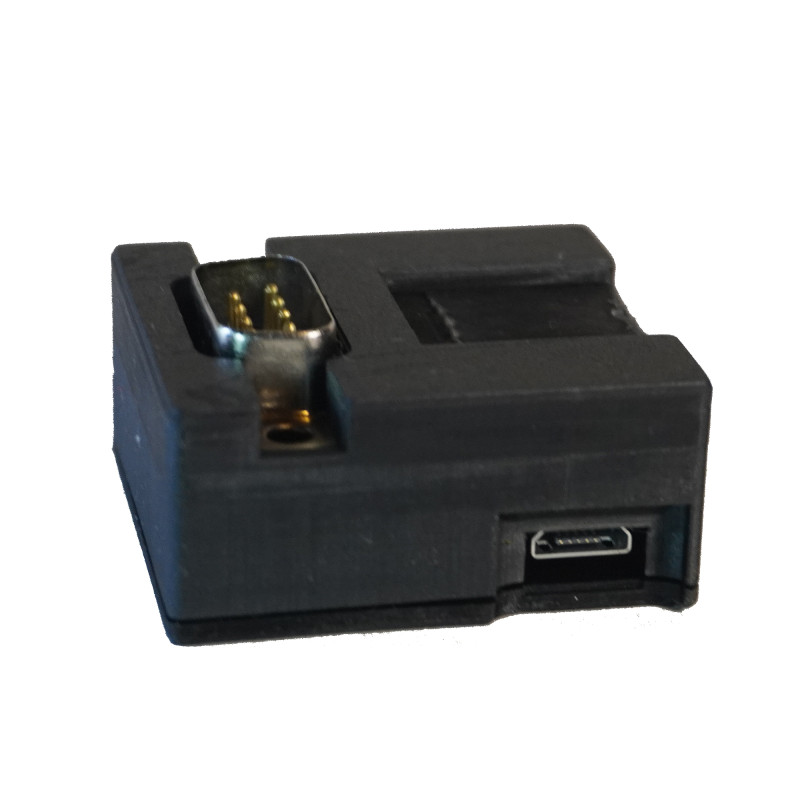

Mega squirts that supply 5v to the DB9 Port through pin 9 do not need external power and will power the Serial-Link itself. For versions that do not supply that power, You can use a phone charger or battery to power it through a micro USB port located on the side of the Serial-Link.

There is no need for you to plug anything into your laptop of phone, just connect to the serial link using your WIFI network settings.

DO NOT FORGET TO CONFIGURE THE WIFI ADAPTER SETTINGS IN THE APPLICATION YOU INTEND TO USE.

Why choose this WIFI module over other wireless adapters?

-Bluetooth modules do not work with Iphones, WiFi adapters do!

- NO SOLDERING OR HARDWARE MODIFICATION REQUIRED! just plug it into the db9 port and go!

- Module has super fast boot times.

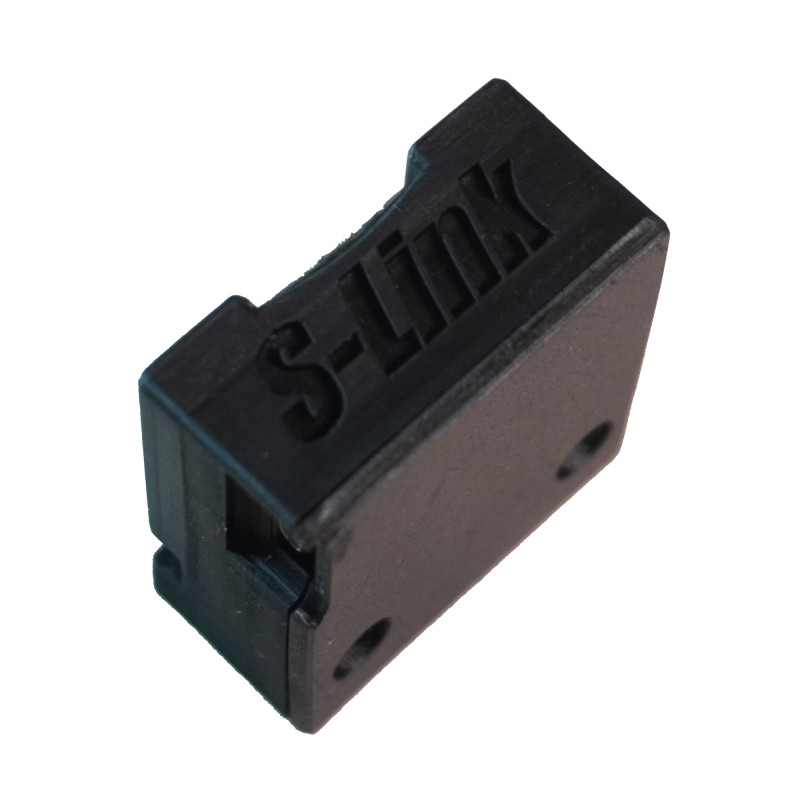

- Bluetooth adapters on the market are big and bulky, which can get in the way of interiors with limited space, the Serial-Link is super slim and small.

- WIFI offers a super fast and reliable connection limiting the amount of data loss and improving the frequency of updates in the data.

- the Serial-Link uses TCP networking to ensure reliable communications between your device and the serial Link to make sure you lose as little data as possible.

- Module supports pass through networking options to allow applications to download definition files from the internet while connected to the adapter (see instructions, optional)

Tested and confirmed working with Windows and Android devices. It most likely works on other operating systems and phones as well but they are untested.

THIS MODULE ONLY ACTS AS A WIRELESS CABLE, IT DOES NOT MODIFY THE DATA BEING TRANSMITTED, SIMPLY FORWARDS DATA BETWEEN THE MEGASQUIRT AND THE APPLICATION YOU ARE USING.
